Analysis of
Spiral Wound Gasket Types
Spiral wound gaskets, as key sealing components in pipe flange connections, have a direct impact on sealing performance and service life. Spiral wound gaskets can be categorized into various types based on sealing requirements and flange types. The following are several common types of spiral wound gaskets and their characteristics:

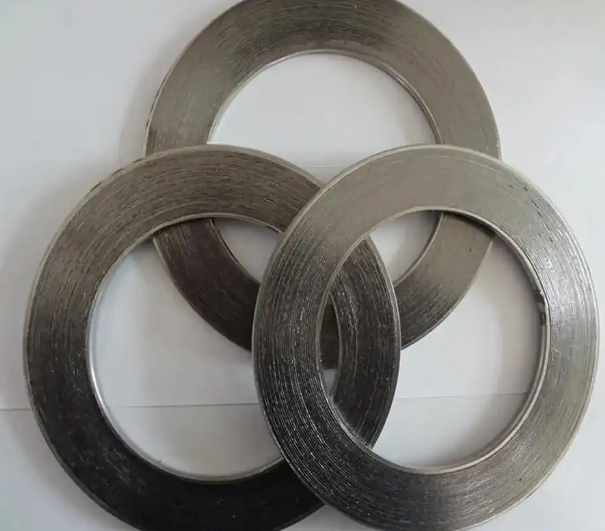

▲ Characteristics and Applications of Type A Gaskets
Type A gaskets are the basic type of spiral wound gasket, suitable for flanges with tongue or groove seals. Their simple design and affordable price make them a highly cost-effective choice.

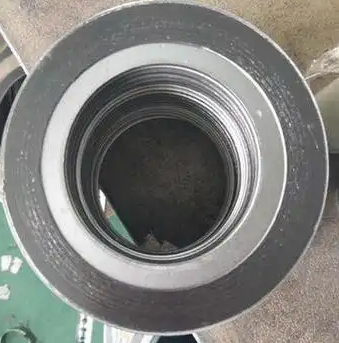

▲ Characteristics and Applications of Type B Gaskets
Type B gaskets, a variant of spiral wound gaskets, also offer excellent sealing performance. Their unique design enables them to excel in a variety of flange sealing applications. Although slightly more expensive than Type A gaskets, they offer superior performance, making them an ideal choice for applications requiring higher sealing standards.

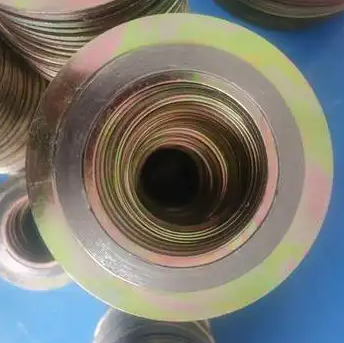

▲ Characteristics and Applications of Type C Gaskets
Type C gaskets, another variant of spiral wound gaskets, also offer excellent sealing performance. Its unique design makes it suitable for a variety of flange sealing scenarios. Although slightly more expensive than Type B gaskets, its superior performance makes it often used in applications requiring higher sealing standards.

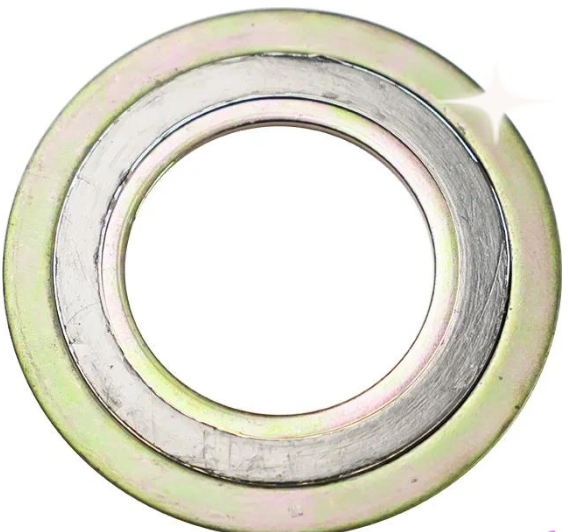

▲ D-Type Gasket Features and Applications
Next, let's explore D-Type gaskets. After understanding their structural characteristics, we'll further examine the relationship between their nominal dimensions and pressure ratings. The nominal dimensions of a D-Type gasket consist of multiple digits, representing the specific selections for the center ring material, metal band material, filler material, and inner ring material. Furthermore, the metal material designation and abbreviations are key information to understand and select when using a D-Type gasket.
D-Type Gasket Materials and Selection
▲ Material Code Analysis
Material selection for D-Type gaskets is crucial. The following are some important material designations and abbreviations:
1: Carbon steel, CRS;
2: 0Cr18Ni9, 304;
3: 00Cr19Ni10, 304L;
4: 0Cr17Ni12Mo2, 316;
5: 00Cr17Ni14Mo2, 316L;
6: 0Cr18Ni10Ti, 321;
7: 0Cr18Ni11Nb, 347;
8: 0Cr25Ni20, 310.
Understanding these material designations is crucial when selecting D-type gaskets.
▲ Filling Material Description
Next, let's take a look at the filling material designations and abbreviations:
1: Chrysotile tape, designated ASB;
2: Flexible graphite tape, designated G.F.;
3: Polytetrafluoroethylene tape, abbreviated PTFE;
4: Non-asbestos fiber tape, designated NA.
Filling materials include chrysotile, flexible graphite, polytetrafluoroethylene, and non-asbestos fibers, each with different properties and applications.
