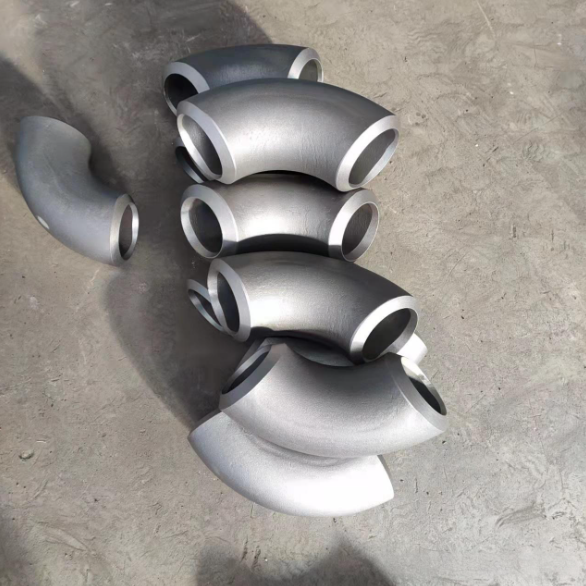

Alloy Steel Elbow Stockist
Alloy steel elbows are critical pipe fittings designed to change the direction of flow within high-pressure, high-temperature, or corrosive piping systems where standard carbon steel components would be inadequate. Their superior performance stems from the intentional addition of specific alloying elements – primarily chromium (Cr), molybdenum (Mo), nickel (Ni), and sometimes vanadium (V) or manganese (Mn) – to the base iron-carbon structure.
Product Description
| Types |
45 Degree Alloy Steel Elbow |
| 60 Degree Alloy Steel Elbow |
| 90 Degree Alloy Steel Elbow |
| Material |
Alloy steel: WP11, WP22, WP12, WP5, WP9, WP91,A182 F11, A182F22, A182F12,A182 F5, A182F91, A182 F9, A420 WPL6, A860 WHPY42/52/62/65/70/80 etc |
| Standards |
ASTM A234 WPB
ANSI B16.9/ ANSI B16.28
MSS SP43/MSS SP75
JIS2311/JIS2312/JIS2313
DIN2605
GB-12459/GB-T13401 |
| Sizes |
1/2"-36" seamless,
8"-110" welded, |
| Angle |
22.5°, 30°, 45°, 60°, 90°, 180° or custom as customer`s requirement |
| Bending |
1D-10D |
| Wall thickness |
STD, XS, XXS, SCH10,SCH20,SCH30,SCH40, SCH60, SCH80, SCH160 |
| Surface |
Black painting, Color painting and others as requirement |
| Lead time |
7-30 days |
| Payment |
L/C at sight, T/T |
| Application |
Pipelines connect, oil and gas, chemical industry, water conservancy, electric power, boiler, machinery,metallurgy, sanitary construction etc |
| Packaging |
Wooden cases, wooden pallet plastic bag or as per customers requirement |
| Custom |
custom is available according to your design and requirements |
| Place of Origin |
China |
| Port |
Tianjin port |
| Certificates |
CE/BV/ASME/ISO/API/CCS etc |
The Advantage Of Alloy Steel Elbow The key advantage of alloy steel elbow lies in its enhanced material properties. The addition of chromium significantly boosts corrosion and oxidation resistance, making these elbows suitable for environments involving acids, sour gas (H2S), or high-temperature steam. Molybdenum is crucial for increasing high-temperature strength (creep resistance) and hardness, allowing the elbows to maintain structural integrity under extreme thermal stress and pressure. Nickel improves toughness and low-temperature performance, while vanadium contributes to strength and wear resistance. This combination results in fittings with Exceptional tensile strength, yield strength, and impact resistance compared to standard carbon steel elbows.
Manufactured to stringent standards like ASME B16.9, ASME B16.28, MSS-SP-75, or MSS-SP-43, alloy steel elbows come in common grades such as ASTM A234 WP5, WP9, WP11, WP22, and WP91. They are produced via seamless (hot extrusion or piercing) or welded (forming and welding plate/pipe) methods, with seamless versions Generally preferred for the most critical high-pressure applications. Standard angles include 90° Alloy Steel Elbow, 45° Alloy Steel Elbow, and 180° Alloy Steel Elbow, with various center-to-face dimensions (e.g., Short Radius Alloy Steel Elbow- SR, Long Radius Alloy Steel Elbow- LR, 3D/5D).
Application Fields Of Alloy Steel Elbows These alloy steel elbows are indispensable in industries operating under severe conditions:
Oil & Gas: Offshore platforms, refineries, pipelines (especially sour service), and petrochemical plants handling corrosive fluids and high pressures.
Power Generation: Fossil fuel power plants (boilers, steam lines, turbines) and nuclear facilities requiring resistance to extreme heat and pressure.
Chemical & Petrochemical Processing: Plants dealing with aggressive acids, alkalis, and solvents.
High-Pressure Industrial Systems: Hydraulic systems, process equipment, and machinery needing reliable directional changes under stress.
Alloy steel elbows provide the robust, reliable solution necessary to navigate piping safely and efficiently in the harshest industrial environments. Their engineered material composition delivers the crucial combination of strength, corrosion resistance, and temperature tolerance that ensures system integrity, longevity, and safety where failure is not an option. Selecting the correct alloy grade and specification is paramount for optimal performance and safety compliance.
