Carbon Steel Elbows Stockist, Carbon Steel Elbows Supplier Carbon steel elbows are metal pipe fittings that change the direction of the carbon steel pipeline. The connection methods include threaded and welded. According to the angle, there are three most commonly used elbows: 45°, 90°, and 180°. In addition, according to the needs of the project, there are also other non-normal angle elbows such as 60°.
Classification of carbon steel elbows
★According to its curvature radius, it can be divided into long radius elbows and short radius elbows. Long radius elbow means that its curvature radius is equal to 1.5 times the outer diameter of the pipe, that is, R=1.5D. Short radius elbow means that its curvature radius is equal to the outer diameter of the pipe, that is, R=1.0D. (D is the diameter of the elbow, R is the curvature radius. D can also be expressed in times.)
If classified by pressure level, there are about seventeen types, which are the same as the American pipe standards, including: Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS; Sch80, Sch100, Sch120, Sch140, Sch160, XXS, among which STD and XS are the most commonly used.
★According to the angle of the elbow, there are 45° elbows, 90° elbows and 180° elbows.
★According to the process form, it can be divided into: butter welded elbow, stamped steel elbow, cast steel elbow, etc.
Basic process of carbon steel elbow
First, weld a polygonal ring shell with a polygonal cross section or a polygonal sector shell with closed ends. After the pressure medium is filled inside, internal pressure is applied. Under the action of internal pressure, the cross section gradually changes from polygon to circle, and finally becomes a circular ring shell. According to needs, a circular ring shell can be cut into 4 90° elbows or 6 60° elbows or elbows of other specifications. This process is suitable for manufacturing large elbows of any specification with a ratio of the elbow middle diameter to the elbow inner diameter greater than 1.5 times. It is an ideal method for manufacturing large carbon steel elbows.

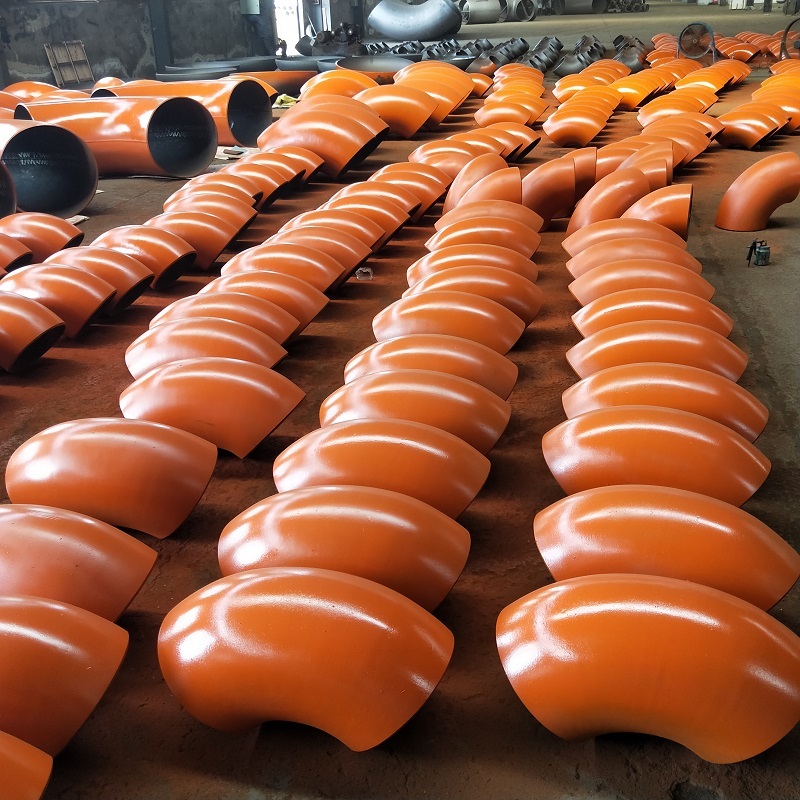

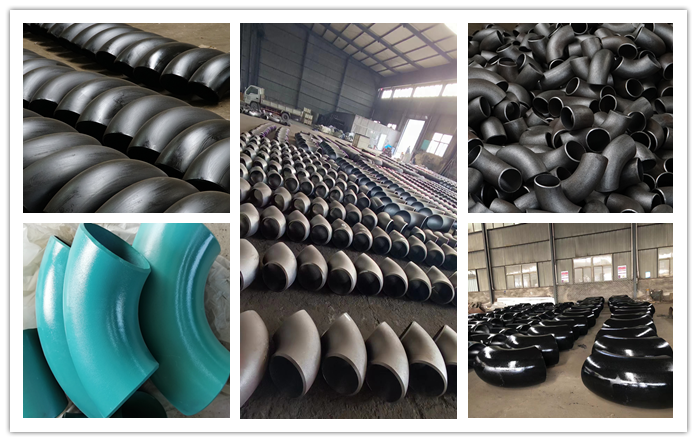

Product Display
Elbow Parameters
|
Size
|
1/2"-36" seamless, 26"-110" welded
|
|
Standard
|
ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, etc.
|
|
Wall thickness
|
STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS etc.
|
|
Elbow
|
30° 45° 60° 90° 180° elbow etc
|
|
Radius
|
LR/long radius/R=1.5D,SR/Shrot radius/R=1D
|
|
End
|
Bevel end/BE/buttweld
|
|
Surface
|
nature color, varnished, black painting, anti-rust oil etc.
|
|
Material
|
Carbon steel: A234WPB, A420 WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,P235GH, P265GH, P280GH, P295GH, P355GH etc.
|
|
Application
|
Petrochemical industry;aviation and aerospace industry;pharmaceutical industry,gas exhaust; power plant;ship building; water treatment, etc.
|
|
Advantages
|
ready stock,faster delivery time;available in all sizes,austomized;high quality
|
| Nominal |
Outside Diameter |
90° Elbows |
45° Elbows |
180° Returns |
| Pipe Size |
Long Radius |
Short Radius |
Long Radius |
Long Radius |
| (inches) |
(mm) |
(inches) |
Center to Face |
Center to Face |
Center to Face |
Radius |
Center to Center |
Back to face |
|
|
|
(inches) |
(inches) |
(inches) |
(inches) |
(inches) |
(inches) |
| 1/2 |
21.3 |
0.84 |
1.5 |
– |
5/8 |
|
2 |
1.875 |
| 3/4 |
26.7 |
1.05 |
1.125 |
– |
7/16 |
|
2.25 |
1.6875 |
| 1 |
33.4 |
1.315 |
1.5 |
1 |
7/8 |
|
3 |
2.1875 |
| 1.25 |
42.2 |
1.66 |
1.875 |
1.25 |
1 |
|
3.75 |
2.75 |
| 1.5 |
48.3 |
1.9 |
2.25 |
1.5 |
1.125 |
3 |
4.5 |
3.25 |
| 2 |
60.3 |
2.375 |
3 |
2 |
1.375 |
4 |
6 |
4.1875 |
| 2.5 |
73 |
2.875 |
3.75 |
2.5 |
1.75 |
5 |
7.5 |
5.1875 |
| 3 |
88.9 |
3.5 |
4.5 |
3 |
2 |
6 |
9 |
6.25 |
| 3.5 |
101.6 |
4 |
5.25 |
3.5 |
2.25 |
7 |
10.5 |
7.25 |
| 4 |
114.3 |
4.5 |
6 |
4 |
2.5 |
8 |
12 |
8.25 |
| 5 |
141.3 |
5.563 |
7.5 |
5 |
3.125 |
10 |
15 |
10.3125 |
| 6 |
168.3 |
6.625 |
9 |
6 |
3.75 |
12 |
18 |
12.3125 |
| 8 |
219.1 |
8.625 |
12 |
8 |
5 |
12 |
24 |
16.3125 |
| 10 |
273.1 |
10.75 |
15 |
10 |
6.25 |
15 |
30 |
20.375 |
| 12 |
323.9 |
12.75 |
18 |
12 |
7.5 |
18 |
36 |
24.375 |

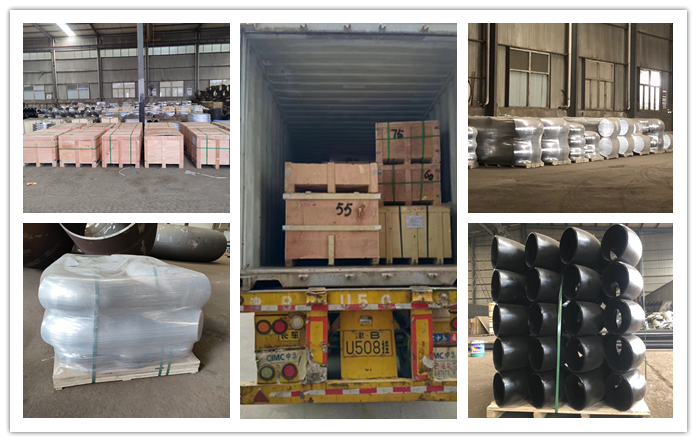

Packaging & Transportation
Shengtian Group provides a variety of standard and non-standard carbon steel elbows. If you have customized requirements, you can also send the drawings to our email: sale@stpipefitting.cn and we will contact you as soon as possible.
