Malleable Cast Iron Elbow Producer,Malleable Cast Iron Elbow Supplier
Malleable cast iron elbow, also known as malleable cast iron elbow, is an elbow made of steel.
Mallet cast iron elbow is commonly known as malleable cast iron elbow, malleable cast iron elbow, vermicular cast iron elbow. The production process is first cast into white cast iron parts, and then forgeable annealing (forgeable annealing decomposes cementite into flocculent graphite) to obtain a malleable cast iron elbow.
Product Description
| Material |
Malleable Iron |
| Contact type |
Male & FemaleThread |
| Specification |
1/4"-6" |
| Standard |
NPT, BS, DIN |
| Chemical Property |
(C% 2.4-2.9), (Si%1.4-1.9), (Mn% 0.4-0.65), (P% <0.1), (S% <0.2) |
| Place of origin |
China |
| Package |
Wooden case with cartons |
| Application |
Fire Fighting, Plumbing, Oil, Gas |
| Advantage |
High quality, good price, faster delivery time, available in all sizes,customized |
| Delivery |
By sea, By air and By express |
| Lead time |
According to the quantities and specifications of each order;
Normal delivery times is from 25 to 35 days after receiving the deposit. |

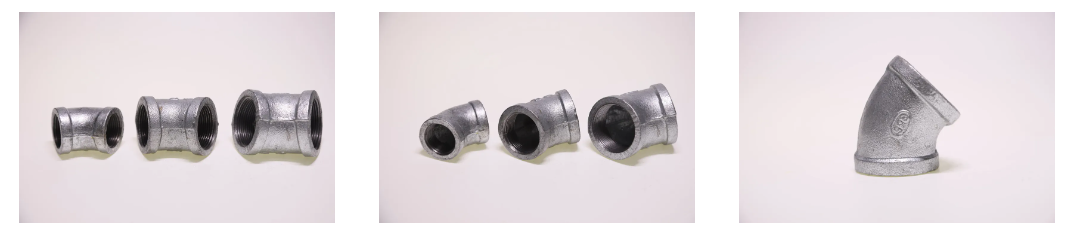

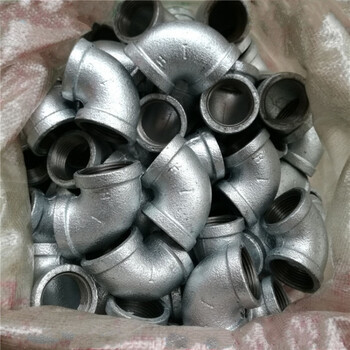

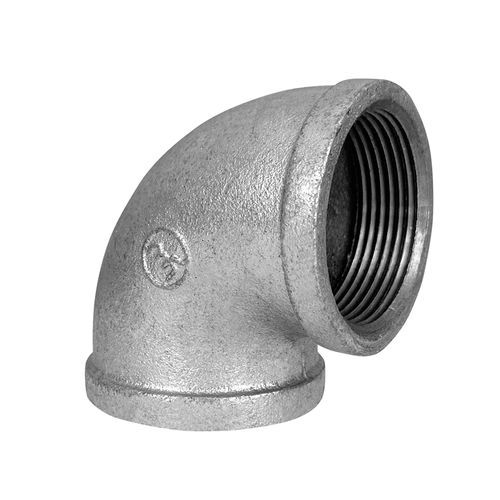

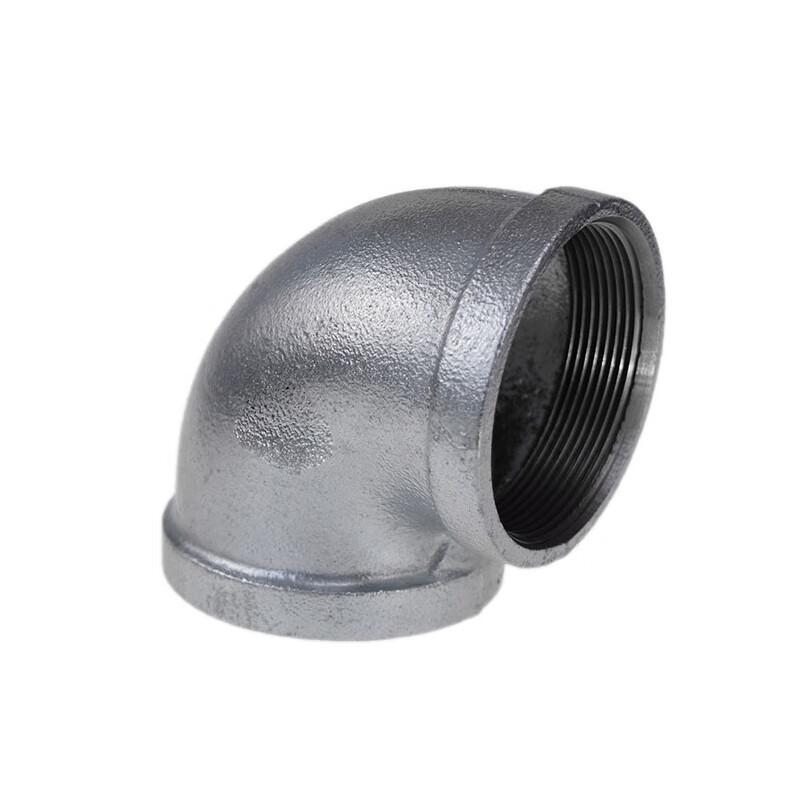

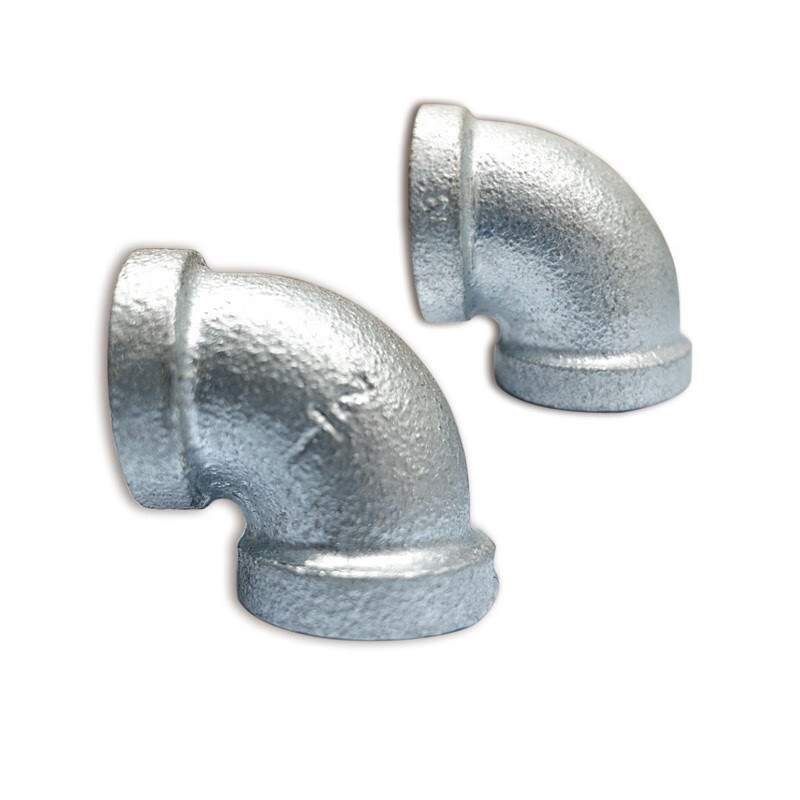

Product Display
Chemical Composition, Structure Of Malleable Cast Iron Elbows The chemical composition of malleable cast iron is: wC=2.2%～2.8%, wSi=1.0%～1.8%, wMn=0.3%～0.8%, wS≤0.2%, wP≤0.1%.
There are two types of structures of malleable cast iron:
Ferrite (F) + flocculent graphite (G); pearlite (P) + flocculent graphite (G).
Performance Of Malleable Cast Iron Elbows Because the graphite in malleable cast iron is in the form of floccules, it has less cutting effect on the matrix, so its mechanical properties are higher than those of gray cast iron, and its plasticity and toughness are good, but malleable cast iron cannot be forged. The matrix structure of malleable cast iron is different, and its performance is also different. Among them, blackheart malleable cast iron has higher plasticity and toughness, while pearlite malleable cast iron has higher strength, hardness and wear resistance.
To meet your various needs, Shengtian Group offers different sizes of standardized Malleable Cast Iron Elbow from 1/4" to 6". Regardless of those normal sizes, you can request custom sizes based on your needs. Our high-quality Malleable Cast Iron Elbows are made of malleable iron, which has the edge over other materials due to its rust-proof property, ductility, durability, and flexibility.
