Name: Stainless Steel Elbow
Brand: Shengtian Group
Availability: InStock
Rating: 5 (1 reviews)

Description

Stainless Steel Elbow Suppliers,Stainless Steel Elbow stockists In China

　　Stainless steel elbows are essential components in modern piping systems and play a vital role in connecting, redirecting, and controlling the flow of fluids and gases across a wide range of industries. These stainless steel elbows are specifically designed to connect sections of stainless steel pipes to form a seamless and efficient network for conveying liquids, gases, and even some solids.

　　The importance of stainless steel elbows cannot be overstated. They are widely used in industries such as food processing, pharmaceuticals, chemical manufacturing, oil and gas, water treatment, and construction. They are popular because of their superior durability, corrosion resistance, and ability to maintain the purity of the substances they convey.

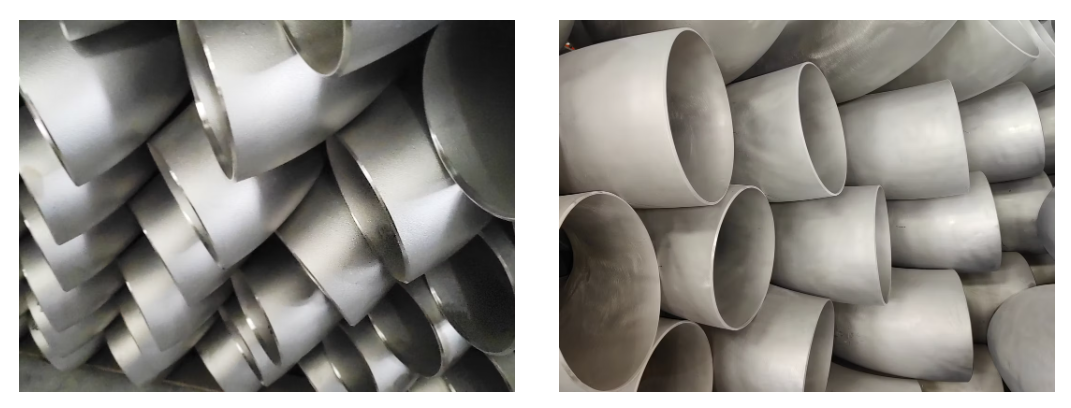

Product Display

Product Description

Size	DN15~DN2000
Wall thickness	Sch5S-SchXXS(0.5mm-60mm)
Standards	ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH,etc
Material	Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L,s31803.s32750.S32760. Alloy Steel:N04400 N06600 N06625 N08020 N08810
Surface treatment	Pickling,annealing,polished,sand rolling,sand blasting,etc

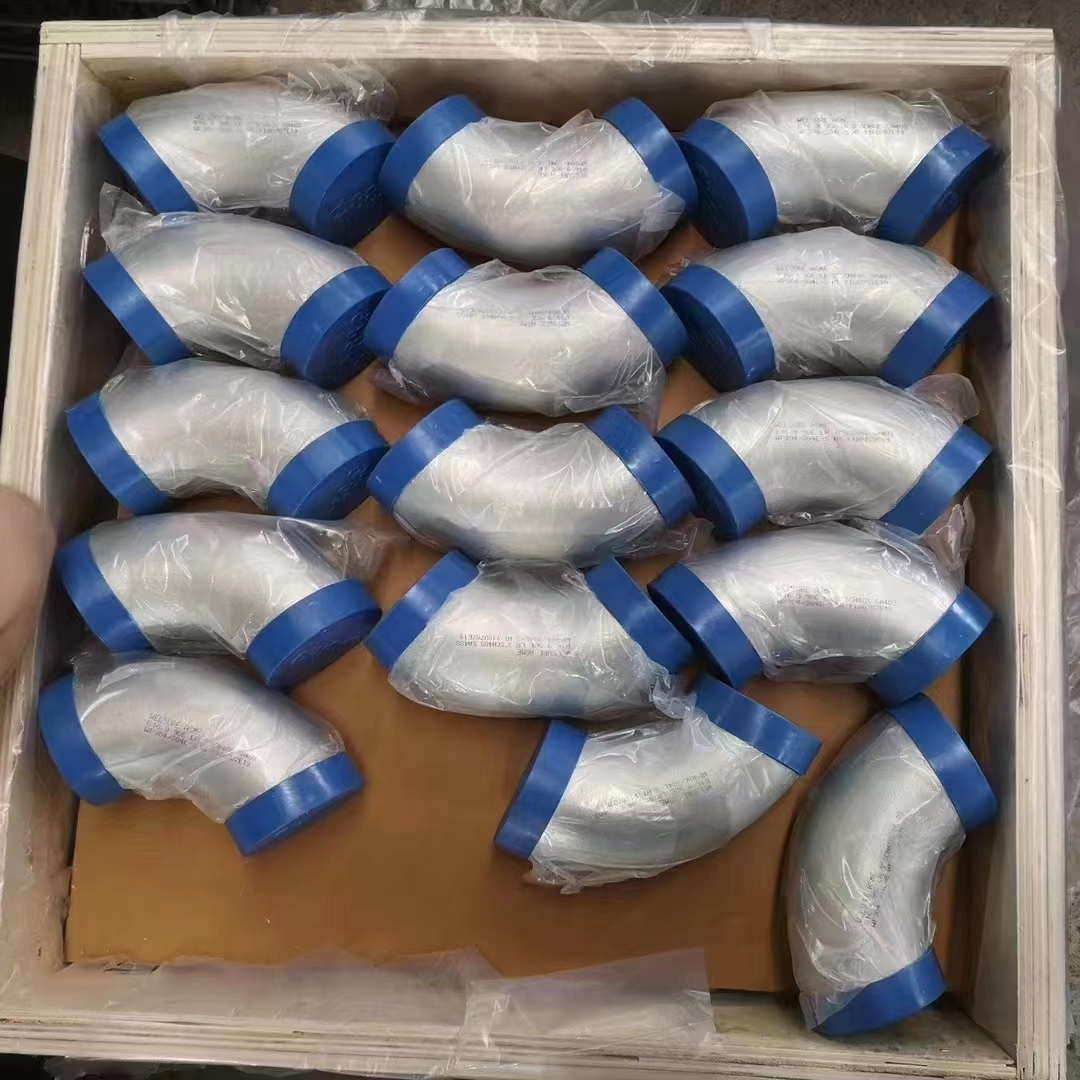

Packing	wooden case, pallet or as customers' requirement
Applications	Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc
Min order	10 piece
Delivery time	15 days after receipt of advanced payment
Certificate	ISO 9001-2008, TUV,ABS,LR,DNV,CCS,PED,ETC
Productivity	50000 pieces per year

　　The stainless steel elbows supplied by Shengtian Group comply with international standards such as ASME, ASTM, JIS and DIN, and can provide excellent precision and reliability even in harsh environments.

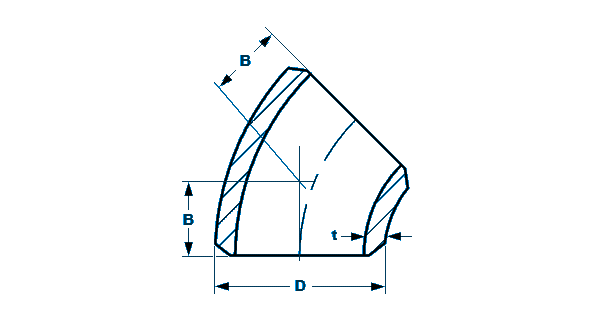

Product Specification

DN15 – DN300

Nominal Pipe Size		Outside Diameter	Thickness(mm)				Center to End(B, mm)
DN	Inch	mm	SCH 5S	SCH 10S	SCH 40S	SCH 80S	Center to End(B, mm)
15	½’’	21.3	1.65	2.11	2.77	3.73	15.88
20	¾’’	26.7	1.65	2.11	2.87	3.91	11.13
25	1’’	33.4	1.65	2.77	3.38	4.55	22.22
32	1 ¼’’	42.2	1.65	2.77	3.56	4.85	25.40
40	1 ½’’	48.3	1.65	2.77	3.68	5.08	28.45
50	2’’	60.3	1.65	2.77	3.91	5.54	35.05
65	2 ½’’	73.0	2.11	3.05	5.16	7.01	44.45
80	3’’	88.9	2.11	3.05	5.49	7.62	50.80
90	3 ½’’	101.6	2.11	3.05	5.74	8.08	57.15
100	4’’	114.3	2.11	3.05	6.02	8.56	63.50
125	5’’	141.3	2.77	3.40	6.55	9.53	79.25
150	6’’	168.3	2.77	3.40	7.11	10.97	95.25
200	8’’	219.1	2.77	3.76	8.18	12.7	127.00
250	10’’	273.1	3.4	4.19	9.27	12.7	158.75
300	12’’	323.9	3.96	4.57	9.53	12.7	190.50

DN350 – DN1200

Nominal Pipe Size		Outside Diameter	Thickness(mm)				Center to End (B, mm)
DN	Inch	mm	SCH 10S	SCH 20S	STD	XS	Center to End (B, mm)
350	14’’	355.6	4.78	7.92	9.53	12.7	222.25
400	16’’	406.4	4.78	7.92	9.53	12.7	254.00
450	18’’	457.2	4.78	7.92	9.53	12.7	285.75
500	20’’	508	5.54	9.53	9.53	12.7	317.50
550	22’’	558.8	5.54	9.53	9.53	12.7	342.90
600	24’’	609.6	6.35	9.53	9.53	12.7	381.00
650	26’’	660.4	7.92	12.7	9.53	12.7	406.40
700	28’’	711.2	7.92	12.7	9.53	12.7	438.15
750	30’’	762	7.92	12.7	9.53	12.7	469.90
800	32’’	812.8	7.92	12.7	9.53	12.7	501.65
850	34’’	863.6	7.92	12.7	9.53	12.7	533.40
900	36’’	914.4	7.92	12.7	9.53	12.7	565.15
950	38’’	965.2	7.92	–	9.53	12.7	599.95
1000	40’’	1016.0	7.92	–	9.53	12.7	631.95
1050	42’’	1066.8	7.92	–	9.53	12.7	660.40
1100	44’’	1117.6	7.92	–	9.53	12.7	695.45
1150	46’’	1168.4	7.92	–	9.53	12.7	726.95
1200	48’’	1219.20	7.92	–	9.53	12.7	758.95

Why choose Shengtian Group's stainless steel elbows?

　　As a leading stainless steel elbow stockist, Shengtian Group provides high-quality stainless steel elbows that ensure seamless operation, reduced pressure loss and easy installation. Our stainless steel elbows are precise and durable, ensuring excellent performance of your piping system.
